How to use the dab ritetm

How do I use, store and clean it? For full instructions, download our user guide.

Troubleshoot

I’m having a bit of trouble and could use some advice from an expert.

General Questions

I have questions about Product Warranties, Orders, Billing or Shipping.

Usage and Storage Guidelines

Full User Guide

Proper storage

  • – Store between 50oF to 104oF
  • – Keep away from moisture
  • – Do not leave outside
  • – Do not drop
  • – Keep out of reach of children

Usage guidelines

  • – To power on your Dab RiteTM, press and hold the power button down for one second until the screen illuminates.
  • – To power off, press and hold the power button down for three seconds
  • – The Dab RiteTM will automatically turn off if it is left on and unused for five minutes
  • – To set the temperature, press the ‘menu’ button once until you see the set temperature on the screen. Then use the left and right buttons to choose your temperature.

Use the flexible arm to adjust the height and position of the sensor.

The Dab Rite™ sensor is made to measure high heat and will only display temperature ranges between 200°F and 800°F. Any temperature above or below those will read as “Low” or “Too Hot.”

To use, line the sensor up with the bottom of your heated banger. When the LED beam guide is on, the beam should align with the edge of your banger so the sensor is centered as shown to the left.

The ideal range for the sensor is between .5” and 1.5” away from the bottom of the banger.

The Dab Rite’s™ sensor is equipped with an LED guide that makes it easy to know if your sensor is aligned with your banger.

To turn the guide on and off, triple click the ‘right’ button. When the guide is on, the LED beam icon shown to the left will be displayed on the screen.

The silicone covers serve two purposes. (1) It protects the sensor and (2) provides a safe place to store your carb cap.

Use to navigate each option

To power on your Dab Rite™, press and hold the power button down for one second until the screen illuminates.

To power off, press and hold the power button down for three seconds.

The Dab Rite™ will automatically turn off if it is left on and unused for five minutes.

The Dab Rite’s™ main feature is alerting you when your desired temperature is reached.

To set the temperature, press the ‘menu’ button once until you see the screen to the left. From here, use the left and right buttons to choose your temperature.

Once selected, press the menu/set button and use the left and right buttons to choose the temperature scale of Fahrenheit (F) or Celsius (C).

Press the menu button again to move onto the next screen.

When the Light Alert is on, the icon will appear on the display. When the set temperature is reached, the screen with flash for three seconds to let you know it is time to dab.

To set the Light Alert, scroll to the screen shown to the left after setting your temperature. Using the left and right buttons, turn the Light Alert on or off.

Press the menu button again to move onto the next screen.

When the Sound Alert is on, the icon will appear on the display. When the set temperature is reached, the unit will ding for three seconds to let you know it is time to dab. When both are on, both icons appear and the unit will flash and ding simultaneously.

To set the Sound Alert, scroll to the screen shown to the left after setting your Light Alert. Using the left and right buttons, turn the Sound Alert on or off.

Press the menu button again to move onto the next screen.

The Dab Rite™ has built-in emissivity settings that have been calibrated to quartz and opaque quartz bangers so it’s easy to switch between banger types.

To set the Banger Type, scroll to the screen shown to the left after setting your Sound Alert. Using the left and right buttons, choose between quartz and opaque quartz.

Press the menu button again to exit to the main display screen.

Plug the provided USB-C cable into the charging port to charge the unit. When the Dab Rite™ is on the battery icon will display the charge in the upper left. When the unit is powered off and charging, the charging icon will appear large on the screen as shown to the left.

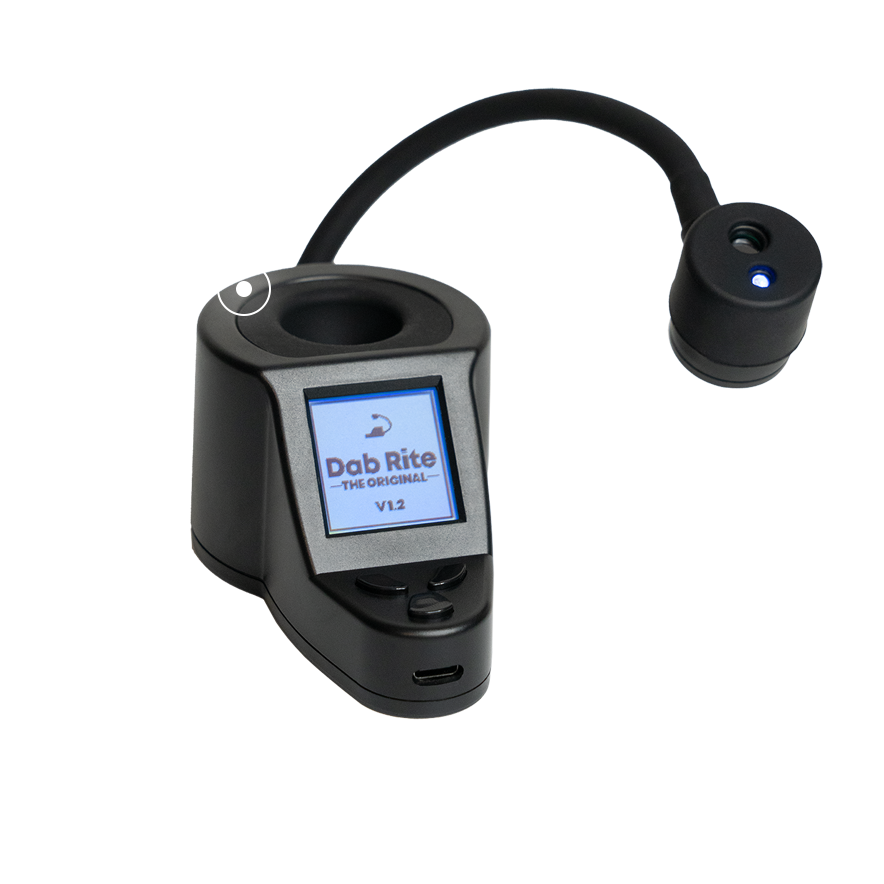

  • General

    Proper storage

    • – Store between 50oF to 104oF
    • – Keep away from moisture
    • – Do not leave outside
    • – Do not drop
    • – Keep out of reach of children

    Usage guidelines

    • – To power on your Dab RiteTM, press and hold the power button down for one second until the screen illuminates.
    • – To power off, press and hold the power button down for three seconds
    • – The Dab RiteTM will automatically turn off if it is left on and unused for five minutes
    • – To set the temperature, press the ‘menu’ button once until you see the set temperature on the screen. Then use the left and right buttons to choose your temperature.

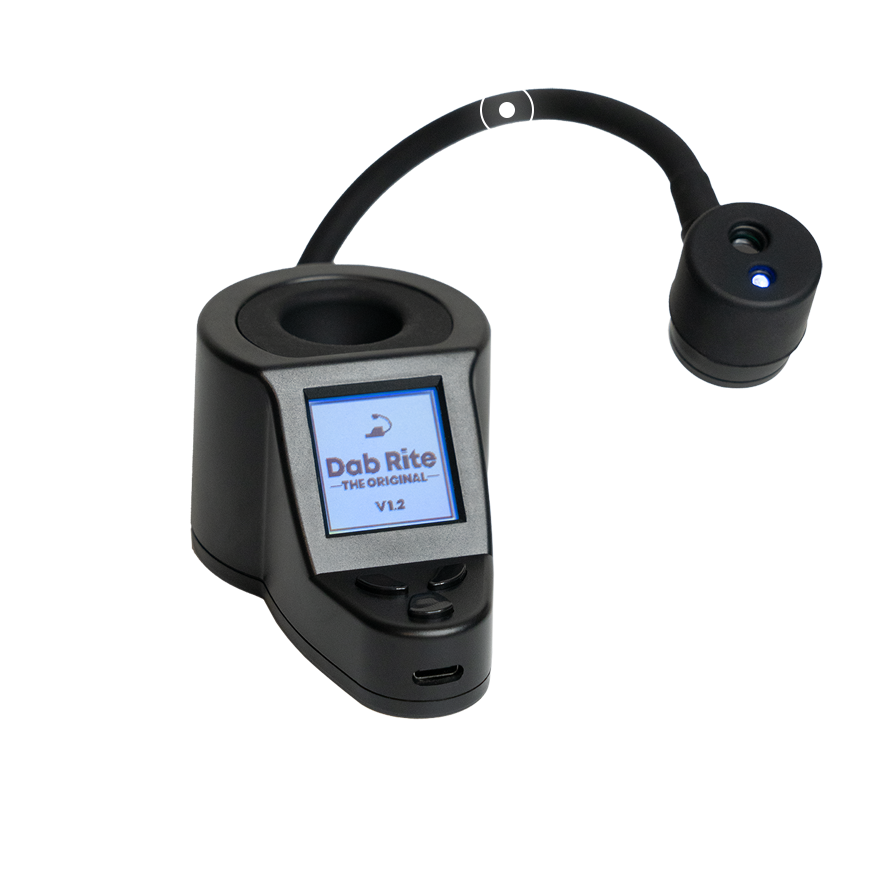

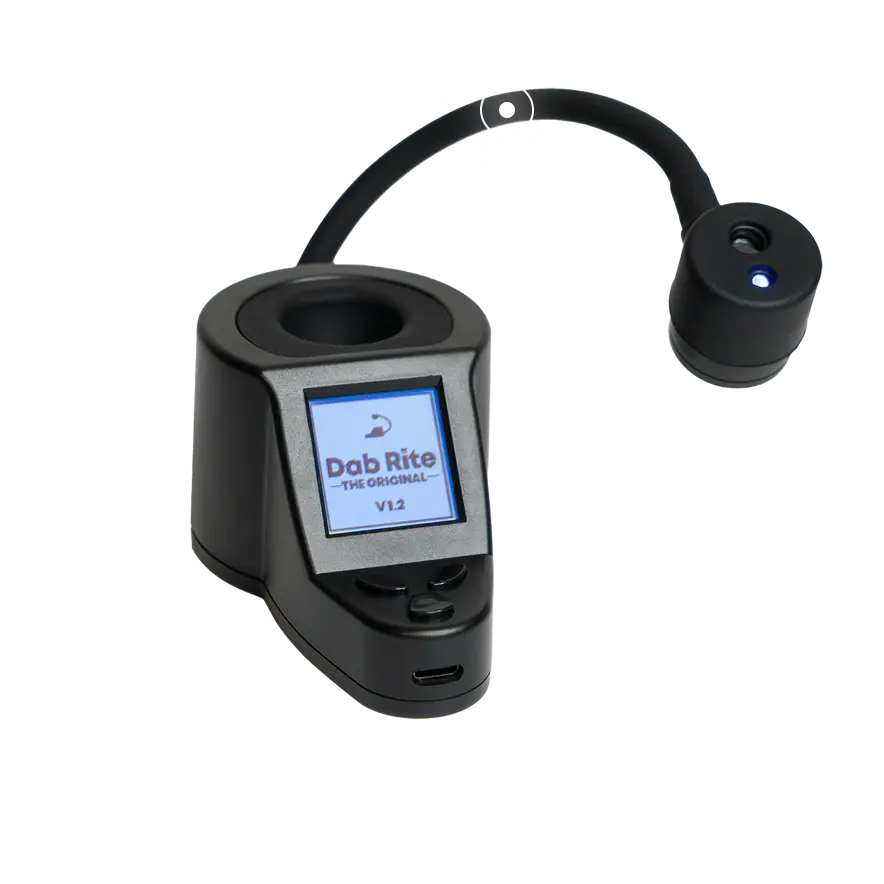

  • flexible reading arm

    Use the flexible arm to adjust the height and position of the sensor.

  • Sensor

    The Dab Rite™ sensor is made to measure high heat and will only display temperature ranges between 200°F and 800°F. Any temperature above or below those will read as “Low” or “Too Hot.”

    To use, line the sensor up with the bottom of your heated banger. When the LED beam guide is on, the beam should align with the edge of your banger so the sensor is centered as shown to the left.

    The ideal range for the sensor is between .5” and 1.5” away from the bottom of the banger.

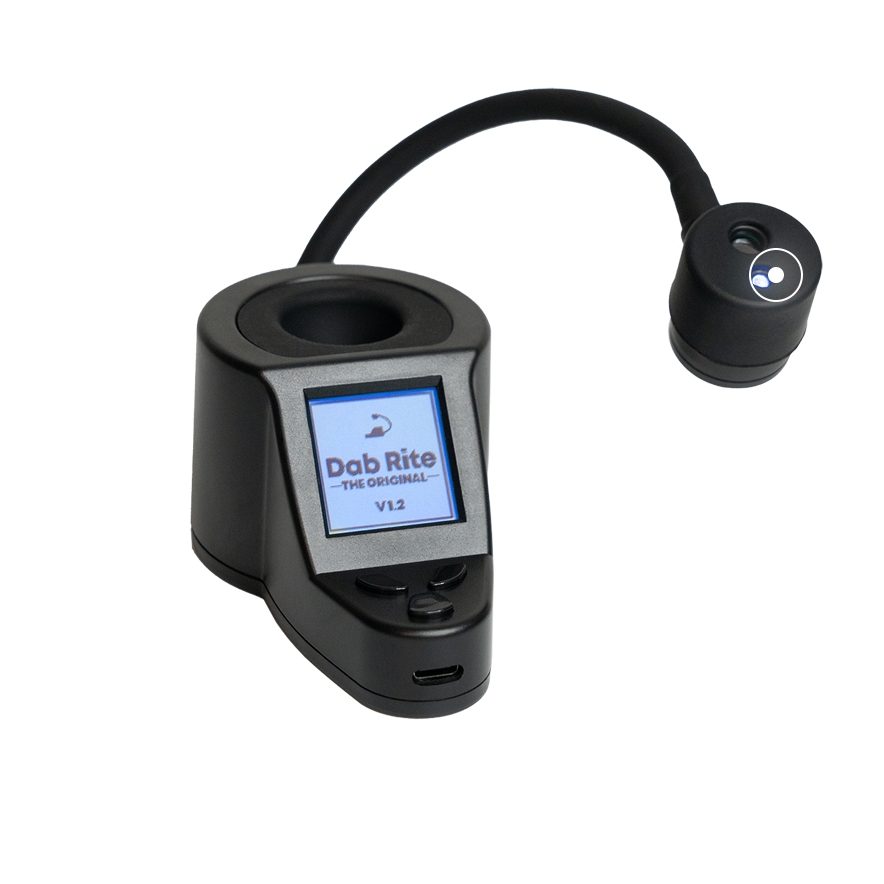

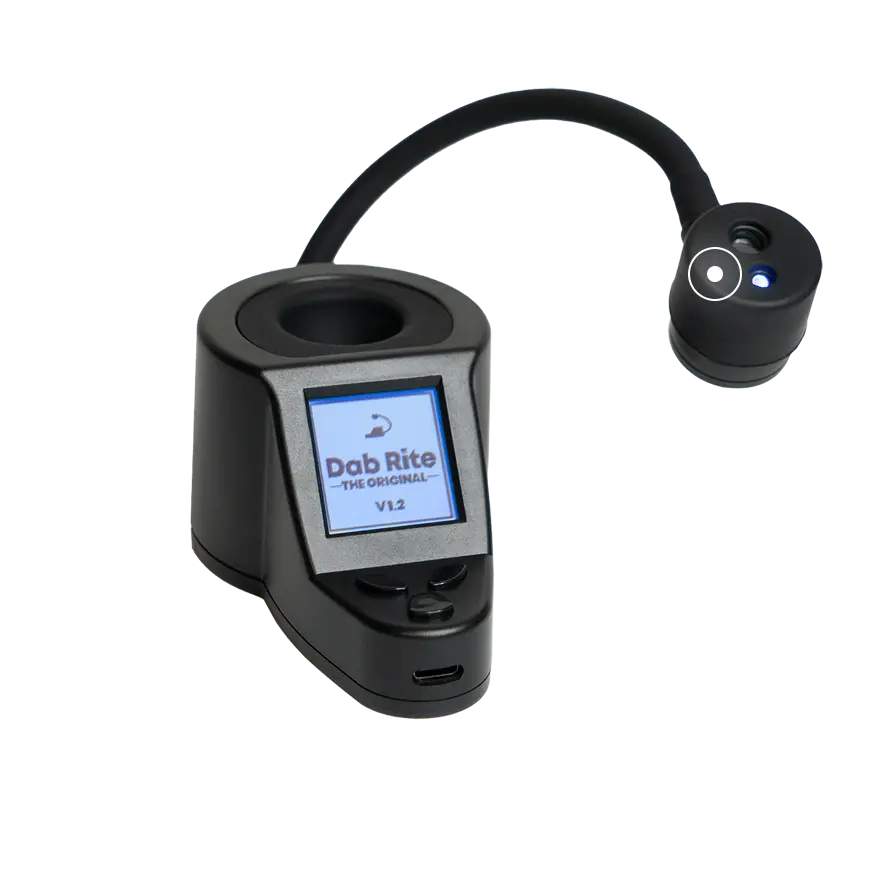

  • LED Guide

    The Dab Rite’s™ sensor is equipped with an LED guide that makes it easy to know if your sensor is aligned with your banger.

    To turn the guide on and off, triple click the ‘right’ button. When the guide is on, the LED beam icon shown to the left will be displayed on the screen.

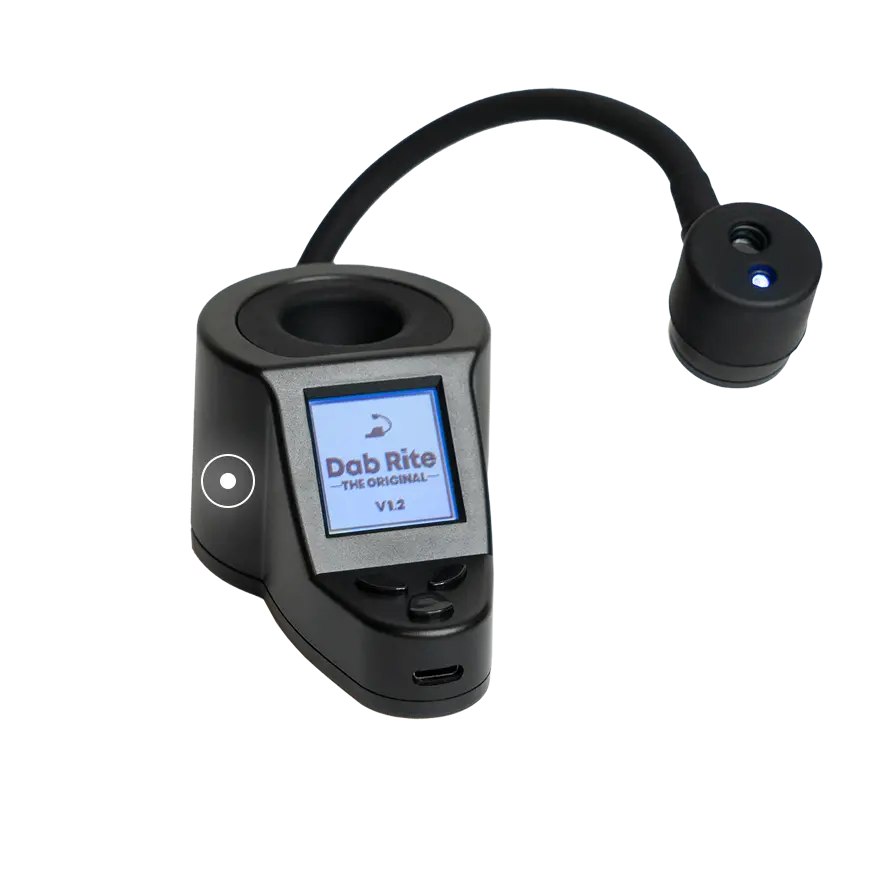

  • Silicone Covers

    The silicone covers serve two purposes. (1) It protects the sensor and (2) provides a safe place to store your carb cap.

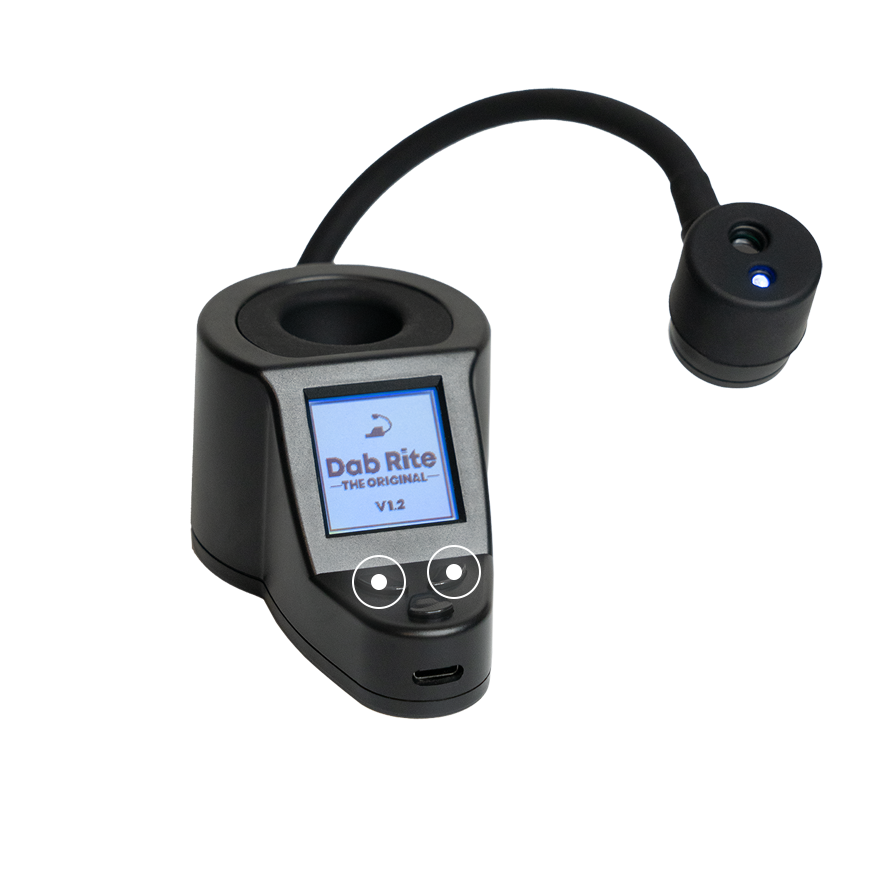

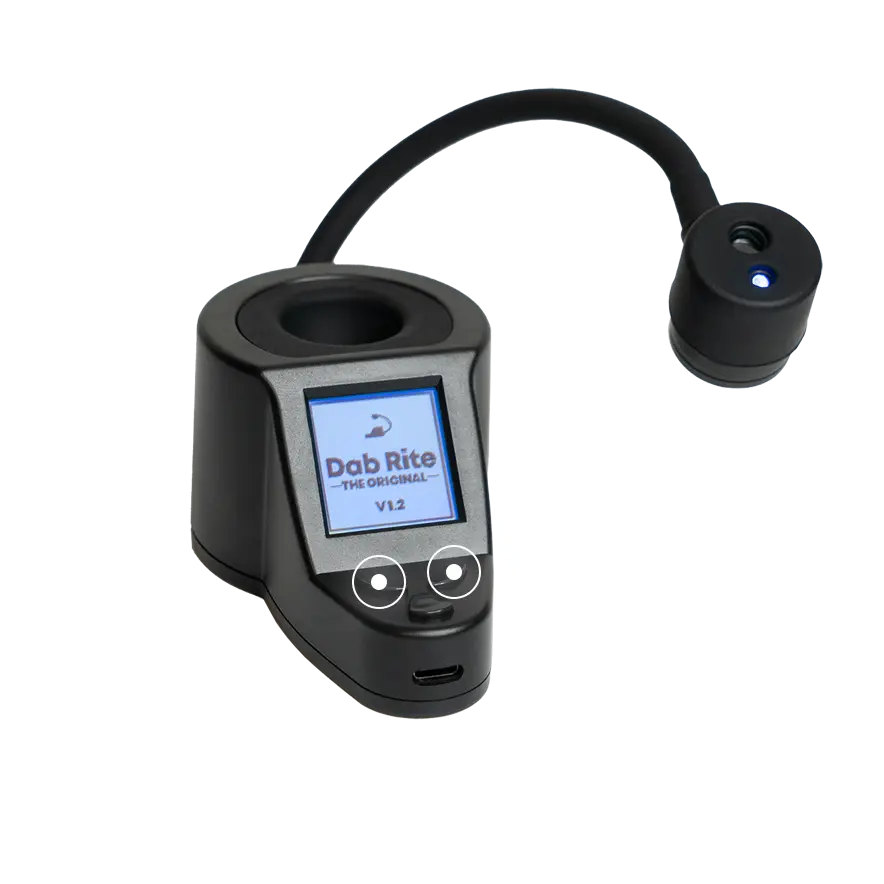

  • Scroll left or right

    Use to navigate each option

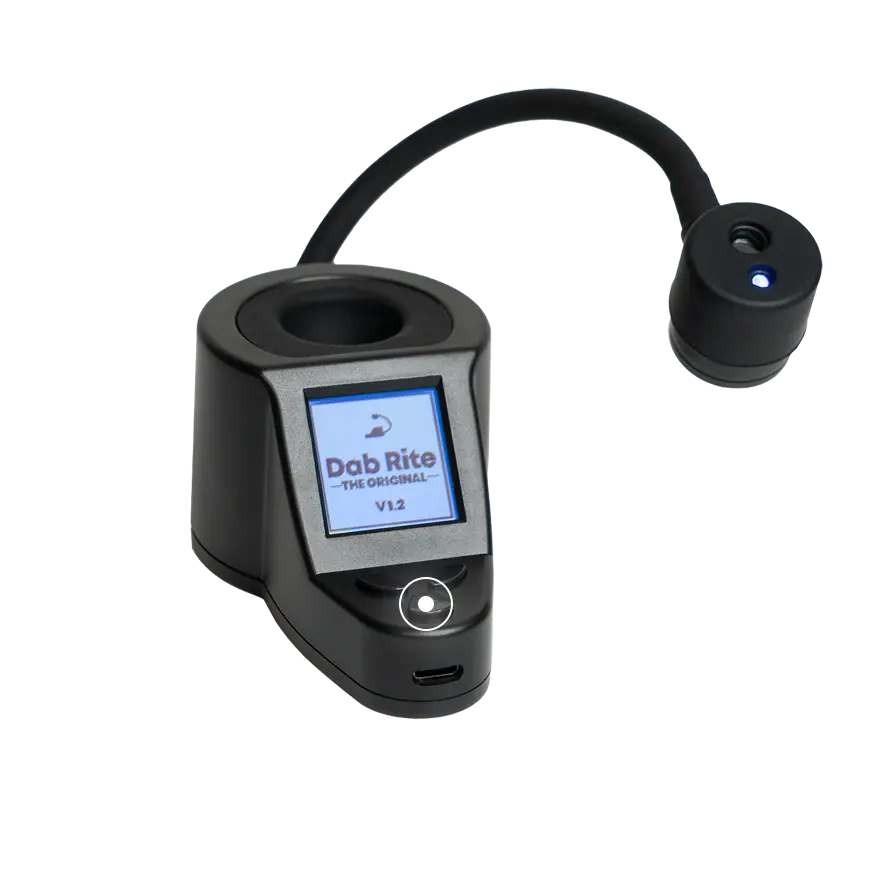

  • POWERING ON, OFF

    To power on your Dab Rite™, press and hold the power button down for one second until the screen illuminates.

    To power off, press and hold the power button down for three seconds.

    The Dab Rite™ will automatically turn off if it is left on and unused for five minutes.

  • SETTING THE TEMPERATURE

    The Dab Rite’s™ main feature is alerting you when your desired temperature is reached.

    To set the temperature, press the ‘menu’ button once until you see the screen to the left. From here, use the left and right buttons to choose your temperature.

    Once selected, press the menu/set button and use the left and right buttons to choose the temperature scale of Fahrenheit (F) or Celsius (C).

    Press the menu button again to move onto the next screen.

  • Light Alert

    When the Light Alert is on, the icon will appear on the display. When the set temperature is reached, the screen with flash for three seconds to let you know it is time to dab.

    To set the Light Alert, scroll to the screen shown to the left after setting your temperature. Using the left and right buttons, turn the Light Alert on or off.

    Press the menu button again to move onto the next screen.

  • Sound Alert

    When the Sound Alert is on, the icon will appear on the display. When the set temperature is reached, the unit will ding for three seconds to let you know it is time to dab. When both are on, both icons appear and the unit will flash and ding simultaneously.

    To set the Sound Alert, scroll to the screen shown to the left after setting your Light Alert. Using the left and right buttons, turn the Sound Alert on or off.

    Press the menu button again to move onto the next screen.

  • Bangers

    The Dab Rite™ has built-in emissivity settings that have been calibrated to quartz and opaque quartz bangers so it’s easy to switch between banger types.

    To set the Banger Type, scroll to the screen shown to the left after setting your Sound Alert. Using the left and right buttons, choose between quartz and opaque quartz.

    Press the menu button again to exit to the main display screen.

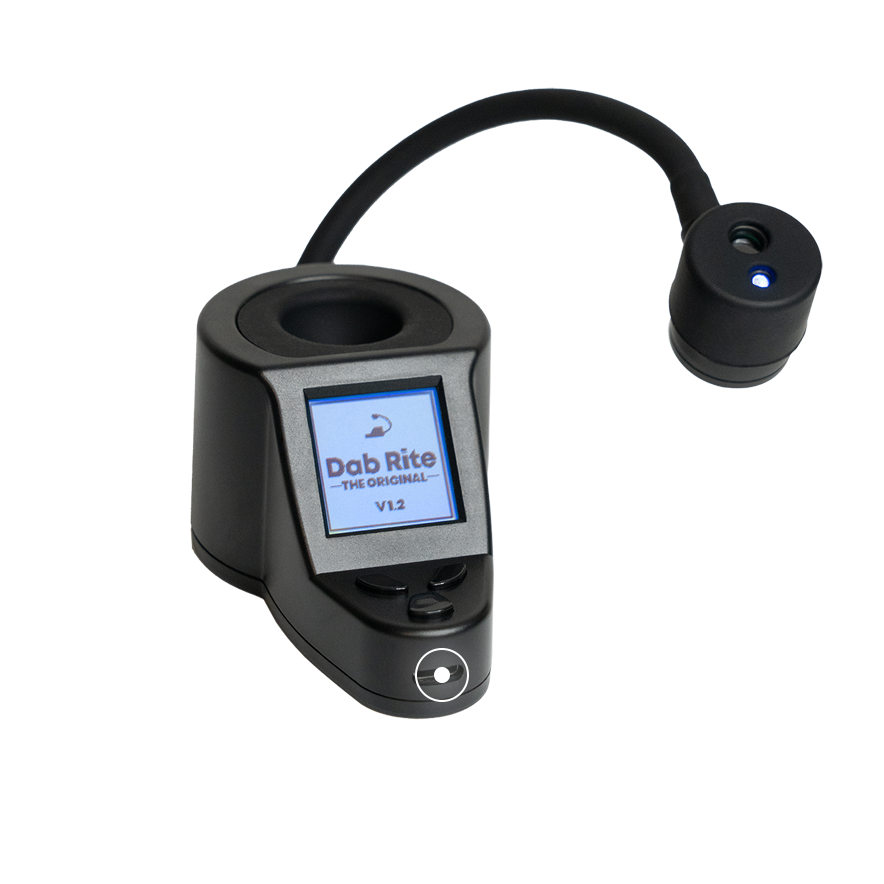

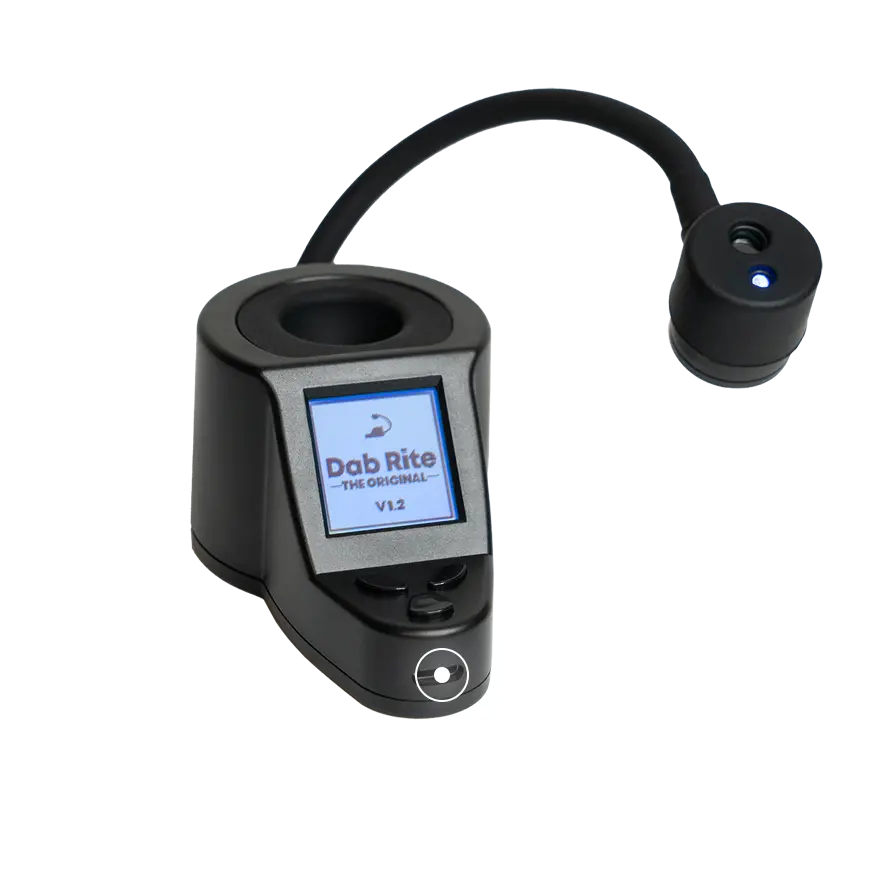

  • USB-C Charging

    Plug the provided USB-C cable into the charging port to charge the unit. When the Dab Rite™ is on the battery icon will display the charge in the upper left. When the unit is powered off and charging, the charging icon will appear large on the screen as shown to the left.

How-To Questions

How should I store my Dab RiteTM?
  • Store between 50°F to 104°F
  • Keep away from moisture
  • Do not leave outside
How do I power my Dab RiteTM on and off?

To power on your Dab Rite™, press and hold the power button down for one second until the screen illuminates.

To power off, press and hold the power button down for three seconds.

The Dab Rite™ will automatically turn off if it is left on and unused for five minutes.

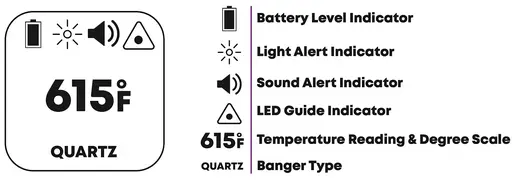

What do the icons mean on the display screen?

How do I set the temperature on my Dab RiteTM?

The Dab Rite’sTM main feature is alerting you when your desired temperature is reached.

To set the temperature, press the ‘menu’ button once until you see the screen to the left. From here, use the left and right buttons to scroll and choose your temperature.

Once selected, press the menu/set button and use the left and right buttons to choose the temperature scale of Fahrenheit (F) or Celsius (C).

Press the menu button again to move onto the next screen.

How does the light alert work?

When the Light Alert is on, the icon will appear on the display. When the set temperature is reached, the screen with flash for three seconds to let you know it is time to dab.

To set the Light Alert, scroll to the screen shown to the left after setting your temperature. Using the left and right buttons, turn the Light Alert on or off.

Press the menu button again to move onto the next screen.

How do the sound alerts work?

When the Sound Alert is on, the icon will appear on the display. When the set temperature is reached, the unit will ding for three seconds to let you know it is time to dab. When both are on, both icons appear and the unit will flash and ding simultaneously.

To set the Sound Alert, scroll to the screen shown to the left after setting your Light Alert. Using the left and right buttons, turn the Sound Alert on or off.

Press the menu button again to move onto the next screen.

How do I set the banger type?

The Dab RiteTM has built-in emissivity settings that have been calibrated to quartz and opaque quartz bangers so it’s easy to switch between banger types.

To set the Banger Type, scroll to the screen shown to the left after setting your Sound Alert.

Using the left and right buttons, choose between quartz and opaque quartz.
Press the menu button again to exit to the main display screen.

How does the LED sensor light work?

The Dab Rite’sTM sensor is equipped with an LED guide that makes it easy to know if your sensor is aligned with your banger.

To turn the guide on and off, triple click the ‘right’ button.

When the guide is on, the LED beam icon shown to the left will be displayed on the screen.

This is separate from the “Light Alert” explained above.

How long should I charge my Dab RiteTM?

The Dab RiteTM comes with a rechargeable Lithium Ion battery and has a battery icon in the upper left of the display that shows the battery’s life.

We recommend charging the device for 1-2 hours prior to the first use and again when it drops below 25%.

Plug the provided USB-A to USB-C cable into the charging port to charge the unit. When the Dab RiteTM is on the battery icon will display the charge in the upper left. When the unit is powered off and charging, the charging icon will appear large on the screen as shown to the left.

What is the correct way to place the sensor?

The Dab RiteTM sensor is made to measure high heat and will only dis- play temperature ranges between 200°F and 800°F. Any temperature above or below those will read as “Low” or “Too Hot.”

Using the flexible arm to adjust the height and position of the sensor, the ideal range for the Dab Rite’s sensor is between .5” and 1.5” away from the bottom of your banger.  When the LED beam guide is on, the beam should align with the edge of your banger so the sensor is properly centered.

The silicone cover protects the sensor from accidental melting, but is not burn proof!  Be careful to keep your sensor the recommended distance from your banger.

What are the suggested temperatures for different concentrates and compounds?

Different concentrates and the compounds found in them all vary when it comes to vaporizing temperatures. We recommend the following as a starting point, but encourage you to get your unit dialed in to your specific needs. The following is just a guide and will vary from person to person based upon personal preference.

  • Ice Water Hash: 450°F to 550°F
  • Live Hash Rosin: 530°F to 580°F
  • Live Resin Badder: 540°F to 590°F
  • Live Resin Sauce/Diamonds: 550°F to 600°F
Do you have an instruction manual?

Troubleshooting

My Sensor suddenly stopped working and isn't reading the correct temperature! What should I do?

This is a common issue that can occur, especially when using a Slurper type banger.  We recommend moving your dab rig away from your Dab Rite’s sensor when placing your oil into the banger to reduce the likelihood of accidental splatters.

Try the following first:

1. Take a chopstick or wooden tooth pick (small piece of soft wood) or a pipe cleaner and using a soft piece of cloth or paper towel dipped in 99% isopropyl alcohol, carefully rub away any debris from the sensor’s lens, which is located at the bottom of the gold barrel.
2. Lightly swab out any remaining debris with a cotton swab
3. Repeat if necessary

If that still doesn’t correct the issue, please email us at [email protected]

5Z2ERB8A

Why won't my Dab Rite charge?

Please ensure that you are using the charging cable that we provided.  iPhone cables and other  USB-C to USB-C cord will not work.

It must be USB-A to USB-C.

My Dab Rite's arm is loose or won't stay in position. What should I do?

Please send a short video to [email protected] and we will begin an exchange!
