Proper storage

• – Store between 50ºF to 104ºF
• – Keep away from moisture
• – Do not leave outside
• – Do not drop
• – Keep out of reach of children

Usage guidelines

• – Power up: Press and hold the power button for one second until the screen illuminates
• – Set temperature: Press the ‘menu’ button once until ‘set temperature’ appears on screen. Use left and right buttons to set preferred temperature
• – Auto shut-off: The Dab RiteTM automatically shuts off if left
  unused for five minutes
• – Power down: Press and hold the power button for three
  seconds.

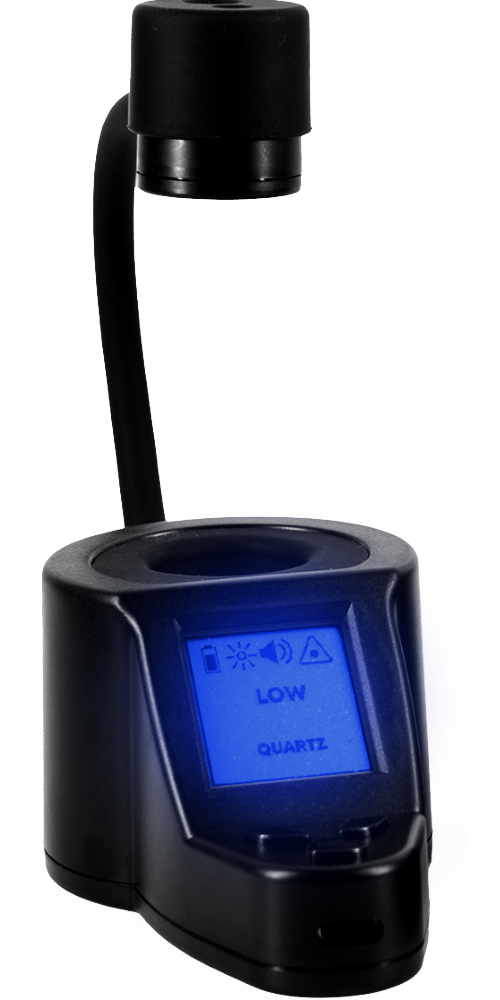

Adjust sensor height and position with the signature flexible arm.

The Dab Rite™ sensor is engineered for high heat and only displays a temperature range between 200°F and 800°F. Below 200º will register “Low,” above 800º will register “Too Hot.”

Line sensor up with the bottom of your heated banger. Align LED beam guide with the edge of your banger so the sensor is centered.

Ideal sensor range is .5 to 1.5 inches from the bottom of the banger

The Dab Rite™ sensor is equipped with an LED guide to ensure it aligns with your banger.

Triple-click the ‘right’ button to turn guide on or off. With guide on, LED beam will be displayed on screen.

Silicone covers protect the sensor and provide a safe place to store your carb cap.

Use to navigate each option.

Power up: Press and hold power button for one second until screen illuminates.

Auto shut-off: The Dab Rite™ automatically shuts off if left unused for five minutes.

Power down: Press and hold power button for three seconds.

The Dab Rite’s™ main feature is its referred-temperature alert.

To set the temperature, press the ‘menu’ button once until ‘set temperature’ appears on screen. Use left and right buttons to set preferred temperature.

Once set, press the ‘menu’ button again, then use left and right buttons to select Fahrenheit (F) or Celsius (C).

Press the menu button again to move to the next screen.

After setting ideal temperature, scroll to the Light Alert screen.

Using left and right buttons, turn Light Alert on or off.

When Light Alert is on, the icon appears on the display.

When the set temperature is reached, the display flashes for three seconds to let you know it’s time to dab.

Press the menu button again to move to the next screen.

After setting Light Alert, scroll to the Sound Alert screen.
Use left and right buttons to turn Sound Alert on or off.

When Sound Alert is on, icon will appear on the display. When set temperature is reached, unit will ding for three seconds – it’s time to dab. When Light and Sound Alert are on, both icons appear and the
unit will flash and ding simultaneously.

Press button again to move to the next screen

After setting Sound Alert, scroll to the Banger Type screen. Use left and right buttons to choose quartz or opaque quartz.

Press menu button again and exit to main display screen.

Plug provided USB-C cable into charging port. When the Dab Rite™ is ON the battery icon will display the charge in the upper left. When the unit is OFF and charging, icon will appear large on display.
